类别： Bead Mills
型号： KBM
特点： Combines two processes of dispersion sand grinding into one, reducing the process steps, no need for pumps or valves, one machine can complete dispersion grinding operations, speed is controllable

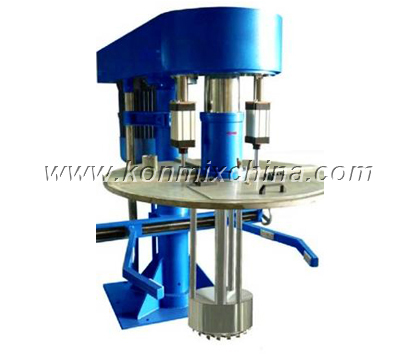

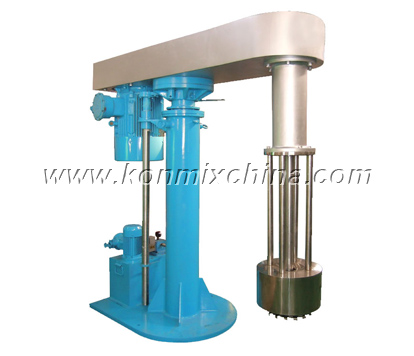

The hydraulic lift-type basket grinder is a new wet grinding equipment. This equipment changes the traditional production process by combining the original two processes of dispersion sand grinding into one, reducing the process steps, no need for pumps or valves, one machine plus one container can complete dispersion grinding, improving efficiency and reducing material waste.
1. This machine is suitable for pilot production and industrial production;
2. It adopts a hydraulic lift method, smooth and convenient; the structure is solid and durable;
3. Combines dispersion and grinding into one, completing both dispersion and fine grinding with a single machine and container;
4. High efficiency, economical and practical, fine grinding fineness, high yield rate, low residue, convenient for cleaning and color changing;
5. Equipped with imported frequency converter, infinitely variable speed control;
6. Can be customized for non-standard design according to user's special needs, such as explosion-proof and sealed configurations, and can choose belt, manual, or pneumatic clamping methods, etc.

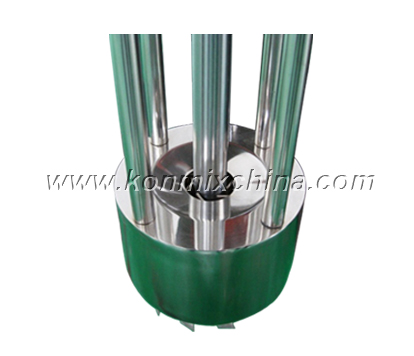

The grinding basket draws materials into the grinding chamber through the high-speed rotation of the impeller. The disc in the grinding chamber is driven by the motor to move the zirconia beads at high speed. The grinding effect is achieved through the impact and friction of the zirconia beads. The high-speed rotating bottom dispersing plate creates a vacuum around it, drawing the materials out of the grinding chamber to achieve circulation. This machine is versatile, reducing the need for peripheral equipment in traditional processing devices, lowering costs, and is also very easy to clean.
| Model | (L) | (kw) | (rpm) | (L) | (mm) | Medium size (mm) |
| KBM-4 | 20-100 | 4 | 0-2880 | 3.5 | 800 | 2.0-2.4 |
| KBM-7.5 | 40-200 | 7.5 | 0-1440 | 4.8 | 900 | 2.0-2.4 |
| KBM-11 | 45-300 | 11 | 0-1440 | 6.5 | 900 | 2.0-2.4 |
| KBM-15 | 50-350 | 15 | 0-1440 | 9 | 900 | 2.0-2.4 |
| KBM-18.5 | 100-500 | 18.5 | 0-1440 | 17 | 1100 | 2.0-2.4 |
| KBM-22 | 150-800 | 22 | 0-1440 | 20 | 1100 | 2.0-2.4 |
| KBM-30 | 200-1200 | 30 | 0-1440 | 32 | 1100 | 2.0-2.4 |
| KBM-37 | 500-1500 | 37 | 0-1440 | 39 | 1600 | 2.0-2.4 |
| KBM-55 | 800-2000 | 55 | 0-1440 | 65 | 1600 | 2.0-2.4 |
Note:
* The processing capacity in the table is determined with "water" as the medium. Selection should be based on detailed calculations considering parameters such as the product's viscosity and specific gravity.
* If the conditions involve high temperature, high pressure, flammability, explosiveness, corrosivity, etc., detailed data must be provided for customized selection and design.
* This table does not include all products. For more information, please contact our sales engineers
