类别： Bead Mills
型号： KWS-0.5L
特点： Continuous wet grinding, good grinding fineness, high efficiency, compact structure. Quick-connect grinding chamber for easy cleaning and color changing, variable frequency speed regulation of equipme

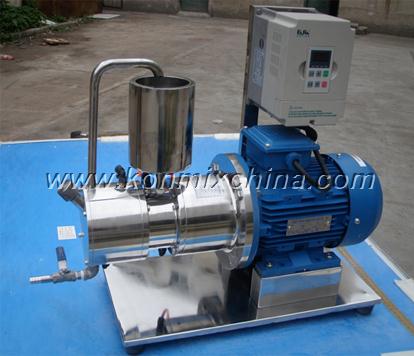

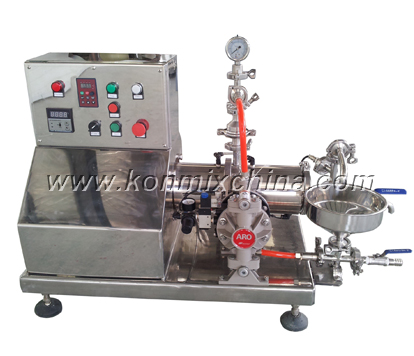

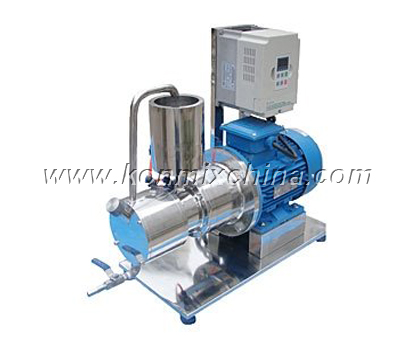

A laboratory horizontal sand mill, a continuous wet grinding production equipment, this equipment has a compact structure, solving the problem of smaller processing volume in the laboratory. Good grinding fineness, using imported Ø1.0-1.2 pure zirconia beads, high grinding fineness, the fineness of some materials after grinding can reach below 1μm. Under the same product, achieving the same fineness requirement only requires half the grinding time of traditional equipment.
Equipped with a circulating system, no need for additional transport pumps, reducing cleaning difficulty.
• This model is suitable to use in industrial fields for pre-mixing liquids.
• It disperses and dissolves materials to smaller particle size efficiently.
• The motor can be ABB or SIEMENS brand.
• The motor can be ABB or SIEMENS brand.
• The motor can be ABB or SIEMENS brand.
• The motor can be ABB or SIEMENS brand.
The grinding discs of the laboratory horizontal bead mill are installed on the stirrer shaft in a certain order, overcoming the disadvantages of traditional horizontal sand mills such as uneven distribution of grinding media and poor particle size distribution after grinding. Under the action of the feed pump, the material enters the grinding chamber. The inlet is designed at one end of the driving connection flange, and the material flow is opposite to the mechanical bearing at the bottom end, greatly reducing the pressure on the mechanical seal and extending its service life. During the high-speed operation of the eccentric disc on the stirrer shaft, the mixture of material and grinding medium undergoes efficient relative motion. As a result, the solid particles of the material are effectively dispersed and sheared, and after passing through the dynamic high-flow rotor gap separator, the final product is obtained. Depending on the product grinding process, independent batch circulation grinding or series grinding process can be adopted.
1. Driving motor: Three-phase asynchronous motor
2. Motor power: 2.2KW
3. Power supply voltage: 220V/50HZ
4. Processing capacity: 0.5-2.5L
5. Cooling method: Circulating cooling water
6. Material of contact: SUS304 wear-resistant stainless steel
7. Material of grinding disc: Wear-resistant zirconia
8. Grinding medium: Ф1.4-Ф2.0mm pure zirconia beads
Widely used in wet grinding experiments and fine chemical fields such as coatings, inks, pigments, color pastes, functional ceramics, printing inks, TFT/LCD color filter dispersions, lithium battery materials, heat-sensitive paper, CMP, ceramic inks, nanopowders, nanopaste, and food additives in research factories, research institutions, universities and colleges, and enterprises.
Capable of grinding aggregated material particles to the required fineness in a short time. Simple operation, safe and reliable, high efficiency.
