类别： Lab Disperser
型号： KFSY
特点： Hydraulic lifting function, stable operation, good dispersion and mixing effect. Frequency conversion speed regulation, speed can be controlled arbitrarily

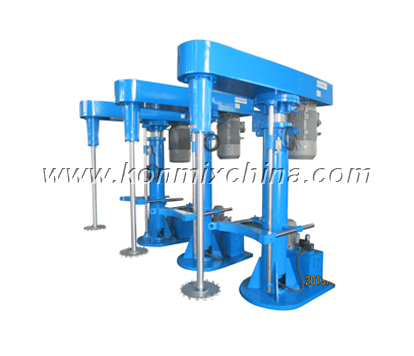

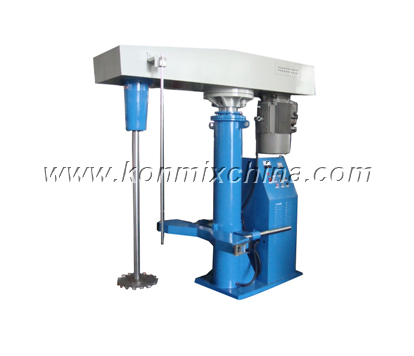

KFSY type hydraulic lifting high-speed disperser, suitable for pre-dispersion and mixing used in industrial production.
Its working principle is through the high-speed rotation of the sawtooth dispersing disc, generating strong shear impact and friction between the material and the dispersing disc, achieving rapid dispersion, dissolution, and uniform mixing. This equipment has a compact structure, stable performance, precise frequency conversion speed regulation, low energy consumption, stable hydraulic lifting performance, convenient operation, easy disassembly and cleaning of the dispersing disc, and is widely used in coatings, inks, adhesives, emulsions, fine chemicals, and other mixing and dispersion applications.
• This model is suitable to use in industrial fields for pre-mixing liquids.
• It disperses and dissolves materials to smaller particle size efficiently.
• The motor can be ABB or SIEMENS brand.
Through the high-speed rotation dispersing disc, the material will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Disc dia(mm) | Lift Stroke(mm) | Hydraulic Power(kw) |
| KFSY-1.5 | ≤50 | 1.5 | 0-1440 | 150 | 600 | 0.55 |
| KFSY-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| KFSY-4 | ≤200 | 4 | 0-1440 | 200 | 800 | 0.55 |
| KFSY-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| KFSY-7.5 | ≤400 | 7.5 | 0-1440 | 230 | 900 | 0.75 |
| KFSY-11 | ≤500 | 11 | 0-1440 | 250 | 900 | 0.75 |
| KFSY-15 | ≤700 | 15 | 0-1440 | 250 | 900 | 0.75 |
| KFSY-18.5 | ≤800 | 18.5 | 0-1440 | 300 | 1100 | 0.75 |
| KFSY-22 | ≤1000 | 22 | 0-1440 | 350 | 1100 | 1.1 |
| KFSY-30 | ≤1500 | 30 | 0-1440 | 400 | 1100 | 1.1 |
| KFSY-37 | ≤1800 | 37 | 0-1440 | 400 | 1600 | 1.1 |
| KFSY-45 | ≤2500 | 45 | 0-1440 | 450 | 1600 | 1.1 |
| KFSY-55 | ≤3000 | 55 | 0-1440 | 500 | 1600 | 1.1 |
| KFSY-75 | ≤4500 | 75 | 0-1200 | 550 | 1800 | 2.2 |
| KFSY-90 | ≤6000 | 90 | 0-960 | 600 | 1800 | 2.2 |
| KFSY-110 | ≤8000 | 110 | 0-960 | 700 | 2100 | 3 |
注：
* 表中处理量是以"水"为介质时测定的数据，选型应根据产品的粘度、比重等参数进行详细计算。
* 如有高温、高压、易燃、易爆、腐蚀性等工况时，必须提供详细数据，以便另行选型定制。
* 本表未能包括所有产品，了解更多请和我们销售工程师联系。
Material viscosity: <=100,000 cps
Production Capacity: 0L-12,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
