类别： Lab Emulsifier
型号： KRH-F
特点： Excellent emulsification and dispersion performance, uniform distribution, and insert-type production. The emulsifier is used with a reaction vessel or mixing tank, and the entire unit provides users

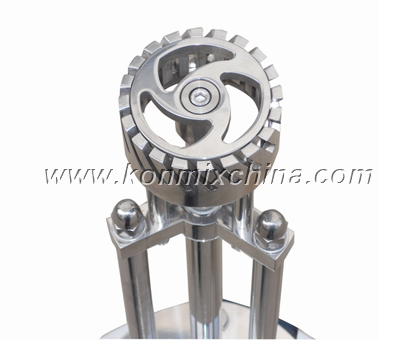

The high-shear emulsifier's rotor rotates at high speed, generating extremely high linear velocity and high-frequency mechanical effects, which produce strong kinetic energy.This causes materials to undergo strong shearing, centrifugal extrusion, liquid layer friction, impact tearing, and turbulence in the precise gap between the rotor and stator. As a result, immiscible solid, liquid, and gas phases are uniformly and finely emulsified instantly under the combined effect of corresponding mature processes and appropriate additives. Through high-frequency cyclic circulation, a stable, high-quality product is ultimately obtained. The emulsifier head features bidirectional feeding with no dead zones.This series of emulsifiers is installed on reaction vessels or containers, with an insert-type production emulsifier head, suitable for large-scale industrial production.
| Model | Capacity(L) | Power(kw) | Rotational Speed (rpm) |
| KRH –F-4 | ≤400 | 4 | 0-2880 |
| KRH –F-7.5 | ≤800 | 7.5 | 0-2880 |
| KRH –F-11 | ≤1000 | 11 | 0-2880 |
| KRH –F-15 | ≤1200 | 15 | 0-1440 |
| KRH –F-22 | ≤1800 | 22 | 0-1440 |
| KRH –F-30 | ≤2500 | 30 | 0-1440 |
| KRH –F-37 | ≤3000 | 37 | 0-1440 |
| KRH –F-45 | ≤4000 | 45 | 0-1440 |
| KRH –F-55 | ≤5000 | 55 | 0-1440 |
| KRH –F-75 | ≤6000 | 75 | 0-1440 |
Note:
* The processing capacity in the table is determined with "water" as the medium. Selection should be based on detailed calculations considering parameters such as the product's viscosity and specific gravity.
* If the conditions involve high temperature, high pressure, flammability, explosiveness, corrosivity, etc., detailed data must be provided for customized selection and design.
* This table does not include all products. For more information, please contact our sales engineers.
Material viscosity: <=100,000 cps
Production Capacity: 0L-12,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
