类别： Customized Disperser
型号： KFS-V
特点： Includes a sealed lifting lid, can be used for vacuum extraction or inputting a certain positive pressure. Machine speed is adjustable, with digital display

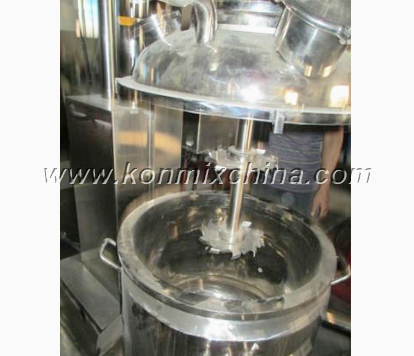

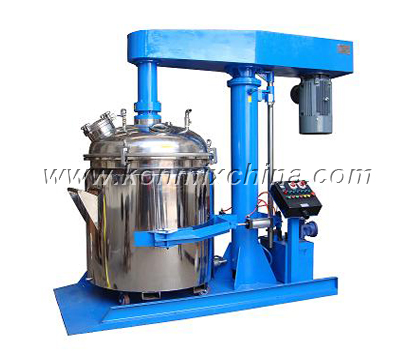

KFS-V Vacuum Sealed High-Speed Disperser, featuring a butterfly lid, with a gasket at the connection with the cylinder to achieve complete sealing, can be used for vacuum extraction or inputting a certain positive pressure.
Suitable for vacuum extraction, mixing reactions, and other conditions, with a wide range of applications. Simple, convenient, and high safety.
The surface of the sealed cover is treated with mirror polishing, making it easy to clean. It can also be customized into sanitary-grade equipment according to customer needs, meeting GMP standards, and satisfying pharmaceutical and food requirements.
Demand from industries such as cosmetics.
• This model is suitable to use in industrial fields for pre-mixing liquids.
• It disperses and dissolves materials to smaller particle size efficiently.
• The motor can be ABB or SIEMENS brand.
By the high-speed rotation of the serrated dispersion disc, strong shear impact and friction are generated between the material and the dispersion disc, achieving the functions of rapid dispersion, dissolution, and uniform mixing. This equipment has a compact structure, stable performance, precise frequency conversion speed regulation, low energy consumption, stable hydraulic lifting performance, convenient operation, easy disassembly and cleaning of the dispersion disc, and is widely used in industries such as coatings, inks, adhesives, emulsions, and fine chemicals.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Disc dia(mm) | Lift Stroke(mm) | Hydraulic Power(kw) |
| KFS-V-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| KFS-V-4 | ≤200 | 4 | 0-1440 | 200 | 800 | 0.55 |
| KFS-V-7.5 | ≤300 | 7.5 | 0-1440 | 250 | 900 | 0.75 |
| KFS-V-11 | ≤400 | 11 | 0-1440 | 250 | 900 | 0.75 |
| KFS-V-15 | ≤600 | 15 | 0-1440 | 250 | 900 | 0.75 |
| KFS-V-18.5 | ≤800 | 18.5 | 0-1440 | 300 | 1100 | 0.75 |
| KFS-V-22 | ≤1000 | 22 | 0-1440 | 350 | 1100 | 1.1 |
| KFS-V-30 | ≤1200 | 30 | 0-1440 | 400 | 1100 | 1.5 |
| KFS-V-37 | ≤1500 | 37 | 0-1440 | 400 | 1300 | 1.5 |
| KFS-V-45 | ≤2000 | 45 | 0-1440 | 450 | 1500 | 2.2 |
| KFS-V-55 | ≤2500 | 55 | 0-1440 | 500 | 1600 | 2.2 |
| KFS-V-75 | ≤3000 | 75 | 0-1440 | 550 | 1700 | 3 |
Note:
* The processing capacity in the table is determined with "water" as the medium. Selection should be based on detailed calculations considering parameters such as the product's viscosity and specific gravity.
* If the conditions involve high temperature, high pressure, flammability, explosiveness, corrosivity, etc., detailed data must be provided for customized selection and design.
* This table does not include all products. For more information, please contact our sales engineers.
Material viscosity: <=100,000 cps
Production Capacity: 0L-12,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
