类别： Lab Disperser
型号： KFS-400W
特点： Adjustable speed, digital display function, easy operation. Often used in factories, universities, and colleges for small-batch experiments.
The KFS-400W High-Speed Disperser is an experimental equipment designed for small-batch dissolution and dispersion, mixing and stirring of products with different viscosities. Through the high-speed rotation of the dispersing disc (up to 8000 rpm), it achieves very high linear speed, enabling rapid dispersion, dissolution, uniform mixing, and emulsification of materials.
• This model is suitable to use in industrial fields for pre-mixing liquids.
• It disperses and dissolves materials to smaller particle size efficiently.

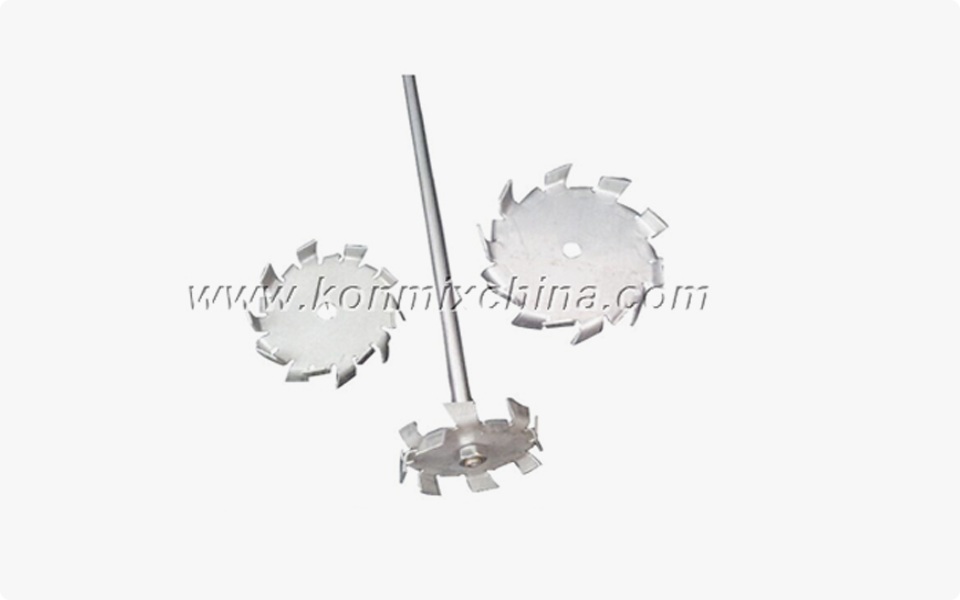

The serrated circular dispersing plates within the container to complete the solid-liquid dispersing, wetting, depolymerization, and stabilization processes. It creates a rolling annular flow, generating strong eddies, causing particles on the impeller surface to spiral downwards into the eddy bottom; at the 2.5-5mm edge of the dispersing plate, a turbulent zone forms, where the slurry and particles undergo intense shearing and impact; outside this zone, two jets form, ensuring thorough circulation and agitation of the slurry; the dispersing plate below the impeller operates in a laminar flow state, with layers of slurry at different velocities diffusing into each other, achieving dispersion.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Disc dia(mm) | Lift Stroke(mm) | Hydraulic Power(kw) |
| KFSY-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| KFSY-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| KFSY-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| KFSY-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
Material viscosity: <=100,000 cps
Production Capacity: 0L-12,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
